Sidewalk grinding and trip-hazard repair

What grinding does

Concrete grinding, sometimes called shaving or horizontal saw cutting depending on the equipment, removes material from the high side of a joint or crack so that the transition between two panels is flush, or beveled to a gentle slope. The equipment is a machine with an abrasive or diamond head that is run across the raised edge until the step is gone. Nothing is added; concrete is taken away. The walkway is walkable as soon as the dust is cleared.

Because it changes only the surface, it is the least disruptive of the three main methods. It is also the most limited: it addresses one raised edge and nothing else about the walkway.

Conditions that may be assessed for grinding

• A joint where one panel sits higher than its neighbor and both panels are otherwise sound.
• A raised edge where the height difference is small enough that removing it leaves a usable slab thickness at the joint. The contractor judges this on site; there is no universal number that applies to every walkway.
• A location where the cause of the raised edge is no longer active, or where the manager accepts that the correction may need repeating if the cause persists.
• A location where closure has to be brief: an entrance, a heavily used path, a route past a medical or childcare tenant.

Conditions it may not solve

• A settled panel. Grinding the neighbor down to meet a sunken slab can leave a low spot that ponds water and thins the neighbor's edge. That case is usually a lifting question.
• A cracked or spalled panel. Grinding across cracks can break the panel further.
• Active movement. Tree roots, a downspout discharging beside the slab, an irrigation leak, or soil that is still moving will reopen the step. Grinding treats the symptom; the cause has to be addressed or the correction repeats.
• A very large height difference. At some point removing enough material leaves too little slab or produces a long bevel that is itself a hazard. That case is usually replacement.

What the accessibility standards actually say

For reference, and because contractors and managers often quote these numbers loosely, here is what the 2010 ADA Standards for Accessible Design say about changes in level on floor and ground surfaces, as published by the U.S. Access Board. Section 303.2 permits a vertical change in level of a quarter inch (6.4 mm) high maximum. Section 303.3 requires changes in level between a quarter inch and a half inch (13 mm) to be beveled with a slope not steeper than 1:2. Section 303.4 requires changes in level greater than a half inch to be ramped and to comply with the ramp or curb ramp provisions. The Access Board's own guide adds that the Standards limit changes in level and openings but do not otherwise regulate overall surface smoothness.

Those are the published figures. This page does not say whether they apply to your walkway, which parts of a property they apply to, or whether a given transition meets them; that depends on the property, the route, and the standard that governs it, and it is a question for a qualified assessment, not a photograph. A beveled grind is one way a contractor may bring a small step within the beveled range, which is why the method is used at all; it is not a certification of anything.

Preparation and access

Grinding needs power or a self-powered machine, access for a small piece of equipment, and a way to control dust. Ask the contractor whether they grind dry with vacuum extraction or wet with water, because each has a clean-up and a nuisance profile. Adjacent landscaping, entrance mats and parked cars may need protecting. Tell tenants the day and hour, because the noise is noticeable.

Dust and noise

Concrete dust is the main nuisance and, unmanaged, a health concern for the operator. Reputable contractors use vacuum shrouds or water. Noise is short but loud. Neither is a reason to avoid the method; both are reasons to ask how they are handled and to schedule accordingly.

Finish expectations

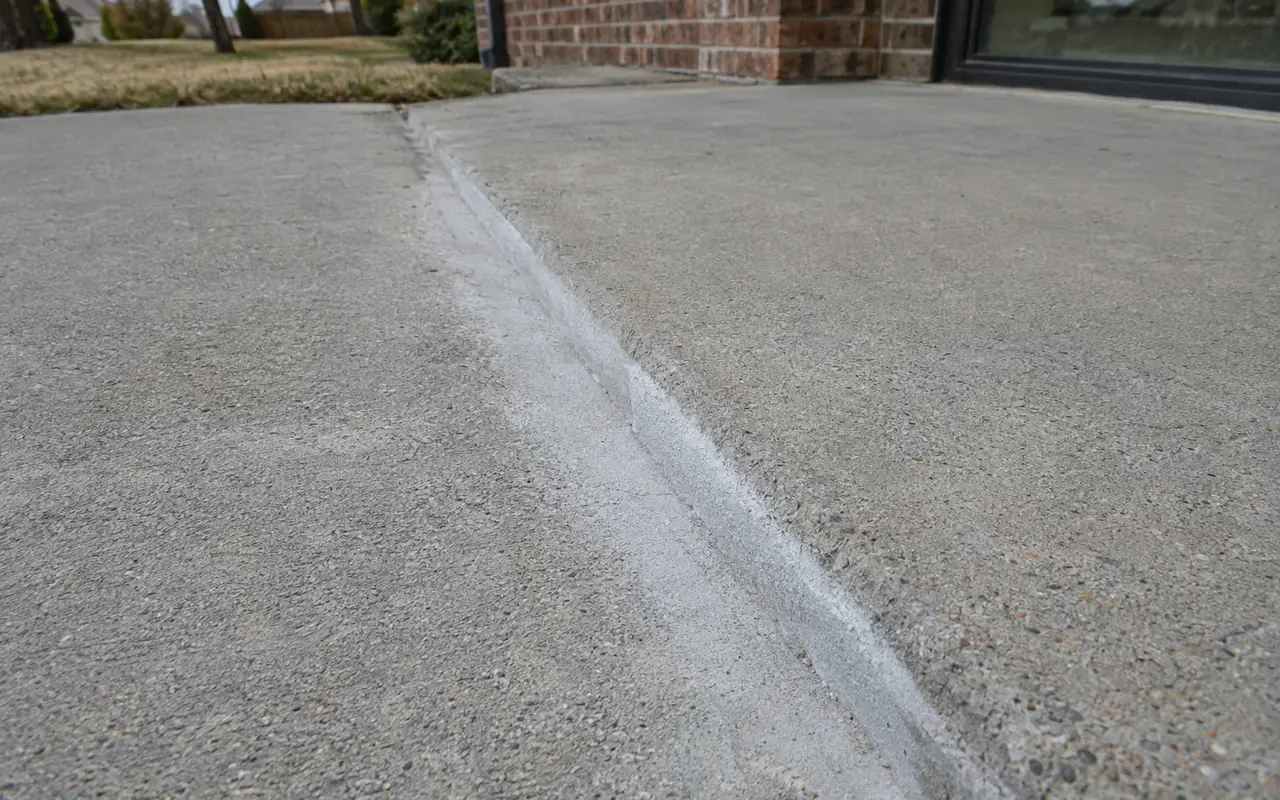

A ground area looks different from the surrounding concrete: lighter, with a smooth or lightly scored texture, in a band across the joint. It weathers over time but rarely disappears. If appearance at an entrance matters, say so; a contractor may be able to feather the bevel or suggest replacement instead. Ask whether the ground surface is textured for slip resistance when wet.

What a contractor needs to quote

The number of joints, the approximate height difference at each, photographs with a scale reference, what is adjacent, when each location can be closed, and one authorizing contact. Whether a site visit is needed before pricing depends on the number of locations and whether the cause of movement is obvious. The inquiry preparation guide covers this, and the cost factors guide explains why mobilization can dominate the price of a small grinding job.

Alternatives

When the low panel has settled, when the panel is cracked, or when the step is large, read the method comparison and the pages on leveling and replacement. Some properties need a mix: grinding at stable joints, lifting or replacement where the cause is still active.

A note on this page's status

Equipment, turnaround, and site controls are described here in general terms from published technical sources. They are not a description of any provider's delivered service. When a provider is verified, the specifics it actually offers will be stated separately and attributed to it.
